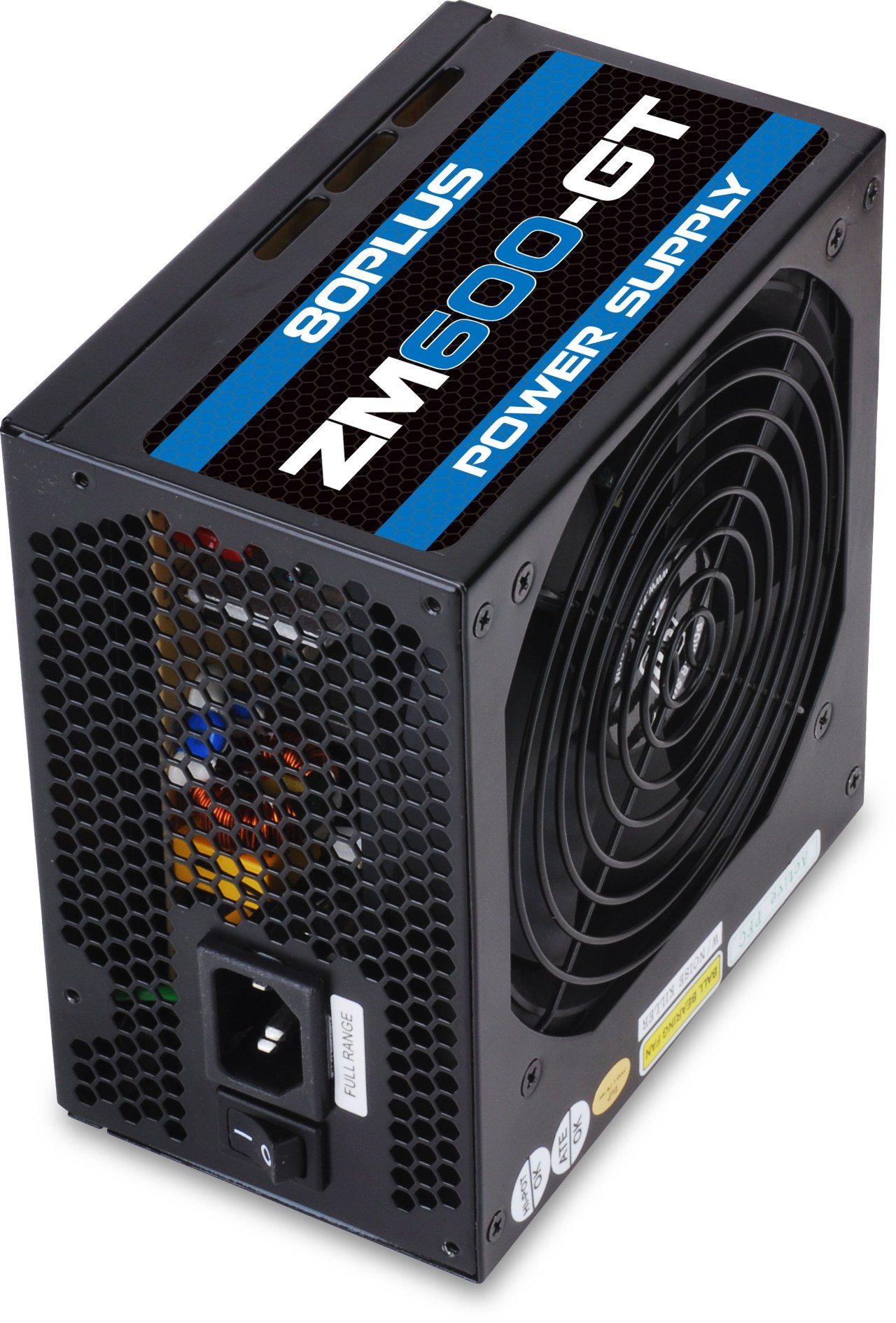

Test Zalman ZM600-GT 600W Duża moc w przestępnej cenie
Plusy
+Świetny wygląd
+Dobre wykonanie
+Użyte materiały wysokiej jakości
+Dużo wtyczek
Minusy
- Słyszalny wentylator przy pełnym wykorzystaniu mocy
Bottom Line
Specyfikacja techniczna M/B 20+4Pin CPU 4+4Pin PCI-Ex 6+2Pin + 6Pin SATA ODD/HDD FDD 500mm 500mm 500mm+150mm 500mm+150mm+150mm 500mm+150mm 800mm AC Input Range Voltage 100VAC ~ 240VAC Frequency 50~60Hz AC Input Current(Rated) 100VAC 9.5A 240VAC 4.5A PFC Type Active PFC Power Factor 99% Maximum Inrush Current Limit(@ Cold start at 25°C) 115VAC 100A […]
0
Opublikowano
23 września 2012 Spis treści:
Recenzja
Specyfikacja techniczna

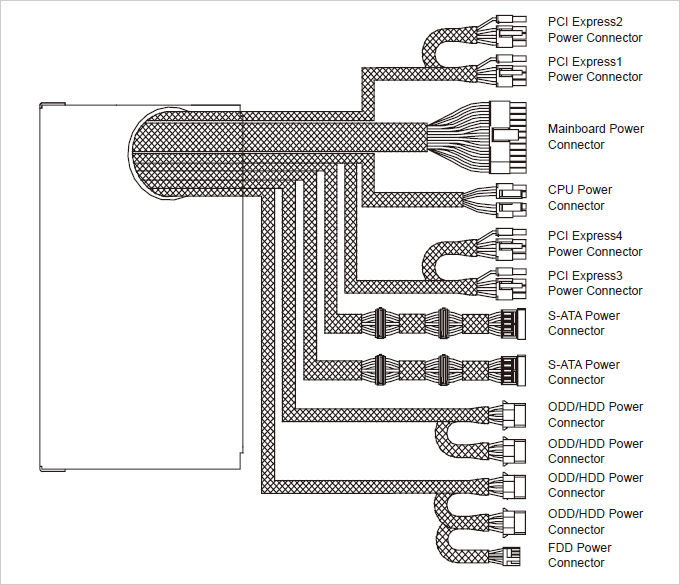

| M/B 20+4Pin | CPU 4+4Pin | PCI-Ex 6+2Pin + 6Pin | SATA | ODD/HDD | FDD |
| 500mm | 500mm | 500mm+150mm | 500mm+150mm+150mm | 500mm+150mm | 800mm |
| AC Input Range | Voltage | 100VAC ~ 240VAC |
| Frequency | 50~60Hz | |
| AC Input Current(Rated) | 100VAC | 9.5A |
| 240VAC | 4.5A | |
| PFC Type | Active PFC | |
| Power Factor | 99% Maximum | |
| Inrush Current Limit(@ Cold start at 25°C) | 115VAC | 100A Maximum |
| 230VAC | 200A Maximum | |
| Efficiency | 87% Maximum @230VAC, Typical load | |
| DC output voltage regulations(At Full Load) | Output V. | Regulation Range |
| +3.3VDC | ±5% +3.14V~+3.47V | |
| +5VDC | ±5% +4.75V~+5.25V | |
| +12V1DC | ±5% +3.14V~+3.47V | |
| +12V2DC | ±5% +3.14V~+3.47V | |
| +12V3DC | ±5% +3.14V~+3.47V | |
| +12V4DC | ±5% +3.14V~+3.47V | |
| -12VDC | ±10% -10.8V~-13.0V | |
| +5VSB | ±5% +4.75V~+5.25V | |
| DC output ripple & noise(At Full Load) | Output V | Regulation Range |
| +3.3VDC | 50mV | |
| +5VDC | 50mV | |
| +12V1DC | 120mV | |
| +12V2DC | 120mV | |
| +12V3DC | 120mV | |
| +12V4DC | 120mV | |
| -12VDC | 120mV | |
| +5VSB | 50mV | |
| DC Output | |||||
| Output V. | Output Load Rating | Combined Power |
|||
| Imin | Imax | Ipeak | |||
| +3.3V | 0.8A | 36A | 155W | 600W | |
| +5V | 0.5A | 30A | |||
| +12V4 | 0.0A | 18A | 20A | 552W | |
| +12V4 | 0.0A | 18A | 20A | ||
| +12V4 | 0.0A | 18A | 20A | ||
| +12V4 | 0,9A | 18A | 20A | ||
| -12V | 0.0A | 0.8A | 9.6W | ||
| +5VSB | 0.0A | 3.0A | 3,5A | 15W | |
| Protection Features | |||||
| Over Voltage Protection(OVP) | |||||
| Over Current Protection(OCP) | |||||
| Under Voltage Protection(UVP) | |||||
| Short Circuit Protection(SCP) | |||||
| Over Power Protection(OPP) | |||||
| Ambient Temperature | |||||
| Operation | 0°C ~ 40°C | ||||
| Storage | -20°C ~ 80°C | ||||
| Ambient Humidity | |||||
| Operation | 5%RH ~ 95%RH | ||||
| Storage | 5%RH ~ 95%RH | ||||
| Dimensions | |||||
| 140(L) x 150(W) x 86(H) mm | |||||
| Weight | |||||
| 2.46kg(Full Package) | |||||
